Rigging Order Guide

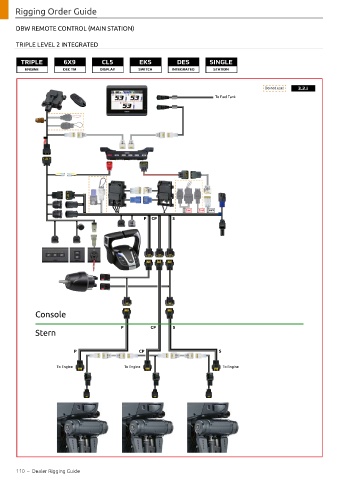

DBW REMOTE CONTROL (MAIN STATION)

TRIPLE LEVEL 2 INTEGRATED

TRIPLE 6X9 CL5 EKS DES SINGLE
ENGINE DEC TM DISPLAY SWITCH INTEGRATED STATION

Do not use! 3.2.i
To Fuel Tank

2nd 2nd 6Y9
P CP S

Console

P CP S
Stern

P CP S

To Engine To Engine To Engine
