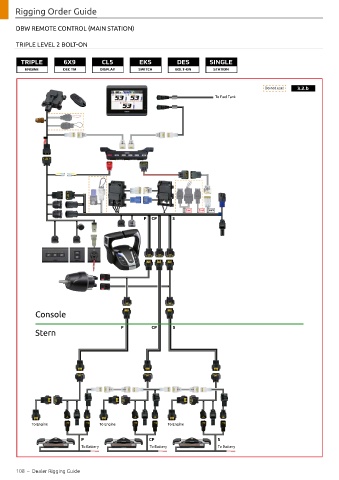

Rigging Order Guide

DBW REMOTE CONTROL (MAIN STATION)

TRIPLE LEVEL 2 BOLT-ON

TRIPLE 6X9 CL5 EKS DES SINGLE
ENGINE DEC TM DISPLAY SWITCH BOLT-ON STATION

Do not use! 3.2.b
To Fuel Tank

2nd 2nd 6Y9
P CP S

Console

P CP S S
Stern

To Engine To Engine To Engine

P CP S
To Battery To Battery To Battery
