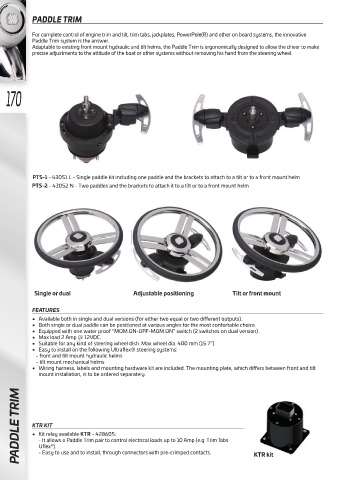

PADDLE TRIM

For complete control of engine trim and tilt, trim tabs, jackplates, PowerPole(R) and other on board systems, the innovative
Paddle Trim system is the answer.
Adaptable to existing front mount hydraulic and tilt helms, the Paddle Trim is ergonomically designed to allow the driver to make
precise adjustments to the attitude of the boat or other systems without removing his hand from the steering wheel.

170

PTS-1 - 43051 L - Single paddle kit including one paddle and the brackets to attach to a tilt or to a front mount helm
PTS-2 - 43052 N - Two paddles and the brackets to attach it to a tilt or to a front mount helm

Single or dual Adjustable positioning Tilt or front mount

FEATURES
• Available both in single and dual versions (for either two equal or two different outputs).
• Both single or dual paddle can be positioned at various angles for the most confortable choice.
• Equipped with one water proof “MOM.ON-OFF-MOM.ON” switch (2 switches on dual version).
• Max load 2 Amp @ 12VDC.
• Suitable for any kind of steering wheel dish. Max wheel dia. 400 mm (15.7”).
• Easy to install on the following Ultraflex® steering systems:
- front and tilt mount hydraulic helms
- tilt mount mechanical helms
• Wiring harness, labels and mounting hardware kit are included. The mounting plate, which differs between front and tilt
mount installation, is to be ordered separately.

PADDLE TRIM KTR KIT ® KTR kit

• Kit relay available KTR - 42860S:
- It allows a Paddle Trim pair to control electrical loads up to 10 Amp (e.g. Trim Tabs

Uflex ).
- Easy to use and to install, through connectors with pre-crimped contacts.
