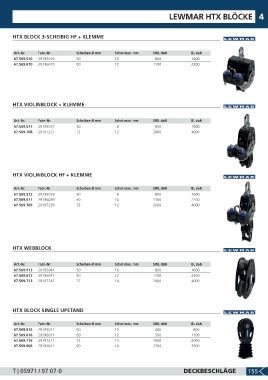

Page 157 - Lankhorst/Hohorst Hauptkatalog 2017-2018

LEWMAR HTX BLÖCKE 4

HTX BLOCK 3-SCHEIBIG HF + KLEMME

Art.-Nr. Fabr.-Nr. Scheiben-Ø mm Schot max. mm SWL daN BL daN
67.569.510 29195010 50 10 800 1600
67.569.610 29196010 60 12 1100 2200

HTX VIOLINBLOCK + KLEMME

Art.-Nr. Fabr.-Nr. Scheiben-Ø mm Schot max. mm SWL daN BL daN
67.569.511 29195037 50 8 800 1600
67.569.708 29197237 72 12 2000 4000

HTX VIOLINBLOCK HF + KLEMME

Art.-Nr. Fabr.-Nr. Scheiben-Ø mm Schot max. mm SWL daN BL daN
67.569.512 29195039 50 8 800 1600
67.569.611 29196039 60 10 1100 2200
67.569.709 29197239 72 12 2000 4000

HTX WEBBLOCK

Art.-Nr. Fabr.-Nr. Scheiben-Ø mm Schot max. mm SWL daN BL daN
67.569.513 29195047 50 10 800 1600
67.569.613 29196047 60 12 1100 2200
67.569.713 29197247 72 14 2000 4000

HTX BLOCK SINGLE UPSTAND

Art.-Nr. Fabr.-Nr. Scheiben-Ø mm Schot max. mm SWL daN BL daN
67.569.516 29195011 50 10 400 800
67.569.616 29196011 60 12 500 1100
67.569.716 29197211 72 14 1000 2000
67.569.906 29199011 90 16 1700 3500
