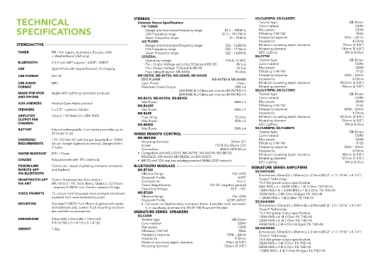

Page 42 - Fusion Marine Entertainment Katalog 2018

TECHNICAL STEREOS SG-CL65SPW, SG-CL65SPC Silk Dome
Tweeter type
Common Stereo Specifications
FM TUNER Cone material CURV
SPECIFICATIONS Europe and Australasia Frequency range 87.5 – 107.9MHz Max power 230W
87.5 – 108MHz
Efficiency (1W/1M)
90db
USA Frequency range
Japan Frequency range 76 – 95MHz Frequency response 70Hz – 22kHz
AM TUNER Impedance 4 Ohms
STEREOACTIVE Europe and Australasia Frequency range 522 – 1620kHz Minimum mounting depth clearance 79mm (3-1/8”)
USA Frequency range 530 – 1710kHz Mounting diameter 136mm (5-3/8”)
TUNER FM / Am (Japan, Australasia, Europe, USA) Japan Frequency range 522 – 1620kHz LED Lighting White & Blue
+ Weatherband (USA only) GENERAL SG-C77W
Operating voltage +10.8–16 VDC Tweeter type Silk Dome
BLUETOOTH V 4.1 with ANT support / A2DP / AVRCP
Pre – Output Voltage excluding 70 Series & BB100 4V p-p Cone material CURV
USB Type-A Port with Apple/Android 1A charging Pre – Output Voltage 70 Series & BB100 3V p-p Max power 280W
Fuse rating (Exeption MS-RA55) 15 Amp Efficiency (1W/1M) 91db
USB FORMAT FAT 32 MS-UD755, MS-AV755, MS-UD650, MS-AV650 Frequency response 60Hz – 22kHz
DVD PLAYER MS-AV755 & MS-AV650 Impedance 4 Ohms
USB AUDIO MP3 Laser Power Class I Minimum mounting depth clearance 85.5mm (3-3/8”)
FORMAT Maximum Power Output 70W x 4 Mounting diameter 156mm (6-1/8”)
26W RMS @ 4 Ohms per channel @10%THD+N SG-CL77SPW, SG-CL77SPC
MADE FOR iPOD Apple IAP2 lightning connector products 43W RMS @ 2 Ohms per channel @10%THD+N Tweeter type Silk Dome
AND iPHONE
MS-RA70, MS-RA70N, MS-BB100 Cone material CURV
AOA ANDROID Android Open Audio protocol Max Power 50W x 4 Max power 280W
MS-RA205 Efficiency (1W/1M) 91db
SPEAKERS 2 x 2.5” + passive radiator Max Power 50W x 4 Frequency response 60Hz – 22kHz
MS-RA55 Impedance 4 Ohms
AMPLIFIER Class-D / 40 Watts (2 x 20W RMS) Fuse rating 15 Amp Minimum mounting depth clearance 85.5mm (3-3/8”)
OUTPUT PER Max Power 45W x 4 Mounting diameter 156mm (6-1/8”)
CHANNEL
MS-BB300 LED Lighting White & Blue
BATTERY Internal rechargeable Li-Ion battery provides up to Max Power 50W x 4 SG-FL88SPW, SG-FL88SPC
20 hours of use WIRED REMOTE CONTROL Tweeter type Silk Dome
Cone material
CURV
MS-NRX300
CHARGING 110~220 Volt AC wall charger (supplied) or 12VDC Mounting diameter 50mm (2”) Max power 330W
REQUIREMENTS 2A car charger (optional accessory); charges within Screen FSTN Dot Matrix LCD Efficiency (1W/1M) 91db
3 hours Frequency response 50Hz – 20kHz
Connection NMEA 2000 Micro Impedance 4 Ohms
WATER RESISTANT IPX7 / Floats • Compatible with MS-UD755, MS-AV755, MS-RA70N, MS-BB100, Minimum mounting depth clearance 105mm (4-1/8”)
MSUD650, MS-AV650, MS-BB300 and MS-RA205
CHASSIS Polycarbonate with TPE overmold • BB100 and 70N requires existing powered NMEA 2000 network Mounting diameter 187mm (7-3/8”)
LED Lighting
White & Blue
FUSION-LINK Control via : Apple (Lightning connector products) BLUETOOTH MODULES SIGNATURE SERIES AMPLIFIERS
REMOTE APP and Android MS-BT100 SG-DA51600
VIA BLUETOOTH Effective Range 10m (33ft) Dimensions: 50mm(D) x 300mm(L) x 210mm(W) (2” x 11-13/16” x 8-1/4”)
Bluetooth Profile A2DP
SMARTWATCH APP Garmin Smartwatches (Vivo Active / Connects via Aux In Class-D Technology
VIA ANT HR, Fenix 3 / HR, Tactix Bravo, Quatix 3, D2 Bravo) Power Requirements: 12V DC (negative ground) 14.4 Volt power output specification:
- requires FUSION-LInk Garmin connect IQ App 80W RMS x 4 + 250W RMS x 1 @ 4 Ohm 1%THD+N
Operating Voltage 10.5 – 16V 130W RMS x 4 + 330W RMS x 1 @ 2 Ohm 1% THD+N
VOICE PROMPTS 12 unique multi-language voice prompts (download MS-BT200 250W RMS x 2 @4 Ohm Bridged 1% THD+N
available from www.stereoactive.com) Effective Range 10m (33ft) + 250W RMS x 1 @ 4 Ohm 1% THD+N
Bluetooth Profile A2DP, AVRCP SG-DA41400
MOUNTING Standard FUSION Puck Mount Supplied with screw • Connects via Satellite radio connector. Note: if satellite radio connector Dimensions: 50mm(D) x 300mm(L) x 210mm(W) (2” x 11-13/16” x 8-1/4”)
and adhesive pad, custom Puck mounting solutions is in use please purchase the MS-BT100 Bluetooth Module Class-D Technology
are available as accessories SIGNATURE SERIES SPEAKERS 14.4 Volt power output specification:
SG-C65W 150W RMS x 4 @ 4 Ohm 1% THD+N
DIMENSIONS 236mm(W) x 82mm(H) x 139mm(D) Tweeter type Silk Dome 220W RMS x 4 @ 2 Ohm 1% THD+N
9-5/16”(W) x 3-1/4”(H) x 5-1/2”(D) Cone material CURV 440W RMS x 2 @ 4 Ohm Bridged 1% THD+N
Max power 230W
WEIGHT 1.3kg SG-DA12250
Efficiency (1W/1M) 90db Dimensions: 50mm(D) x 300mm(L) x 210mm(W) (2” x 11-13/16” x 8-1/4”)
Frequency response 70Hz – 22kHz Class-D Technology
Impedance 4 Ohms 14.4 Volt power output specification:
Minimum mounting depth clearance 79mm (3-1/8”) 500W RMS x 1 @ 4 Ohm 1% THD+N
Mounting diameter 136mm (5-3/8”) 850W RMS x 1 @ 2 Ohm 1% THD+N
1100W RMS x 1 @ 1 Ohm Bridged 1% THD+N
