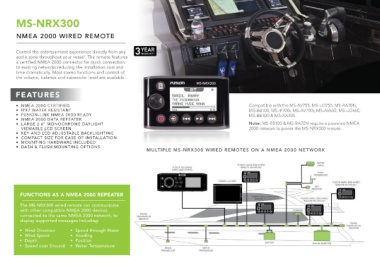

Page 36 - Fusion Marine Entertainment Katalog 2018

MS-NRX300

NMEA 2000 WIRED REMOTE

Control the entertainment experience directly from any
audio zone throughout your vessel. The remote features
a certified NMEA 2000 connector for quick connection
to existing networks reducing the installation cost and
time dramatically. Most stereo functions and control of
the volume, balance and subwoofer level are available.

FEATURES

• NMEA 2000 CERTIFIED Compatible with the MS-AV755, MS-UD755, MS-RA70N,
• IPX7 WATER RESISTANT MS-BB100, MS-IP700i, MS-AV700i, MS-AV650, MS-UD650,
• FUSION-LINK NMEA 2000 READY MS-BB300 & MS-RA205.
• NMEA 2000 DATA REPEATER
• L ARGE 2.6” MONOCHROME DAYLIGHT Note: MS-BB100 & MS-RA70N require a powered NMEA
VIEWABLE LCD SCREEN 2000 network to power the MS-NRX300 remote.
• KEY AND LCD ADJUSTABLE BACKLIGHTING
• COMPACT SIZE FOR EASE OF INSTALL ATION
• MOUNTING HARDWARE INCLUDED
• DASH & FLUSH MOUNTING OPTIONS
MULTIPLE MS‑NRX300 WIRED REMOTES ON A NMEA 2000 NETWORK

FUNCTIONS AS A NMEA 2000 REPEATER
The MS-NRX300 wired remote can communicate
with other compatible NMEA 2000 devices
connected to the same NMEA 2000 network, to
display supported messages including:

• Wind Direction • Speed through Water
• Wind Speed • Heading
• Depth • Position
• Speed over Ground • Water Temperature
