Rigging Order Guide

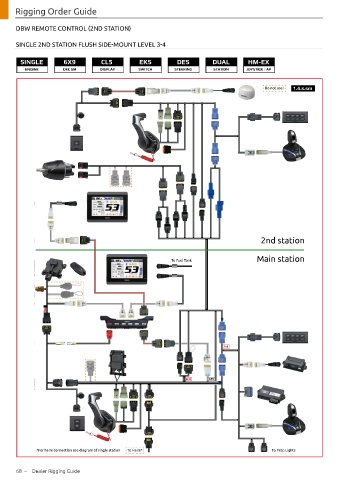

DBW REMOTE CONTROL (2ND STATION)
SINGLE 2ND STATION FLUSH SIDE-MOUNT LEVEL 3-4
SINGLE 6X9 CL5 EKS DES DUAL HM-EX
ENGINE DEC SM DISPLAY SWITCH STEERING STATION JOYSTICK / AP
Do not use! 1.4.s.sm
2nd station
Main station
To Fuel Tank
2nd
2nd 6Y9
T
*For helm connection see diagram of single station To Engine To Prop Lights
*
