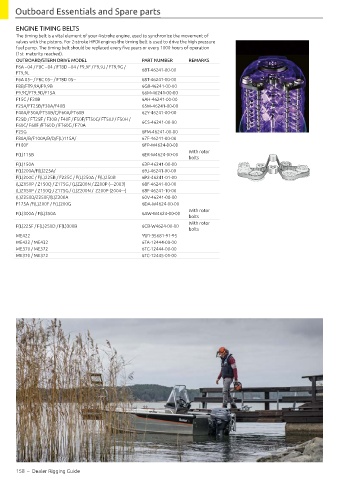

Page 160 - Yamaha Marine Zubehör 2021

Outboard Essentials and Spare parts

ENGINE TIMING BELTS
The timing belt is a vital element of your 4-stroke engine, used to synchronize the movement of
valves with the pistons. For 2-stroke HPDI engines the timing belt is used to drive the high pressure
fuel pump. The timing belt should be replaced every five years or every 1000 hours of operation
(1st maturity reached).
OUTBOARD/STERN DRIVE MODEL PART NUMBER REMARKS
F6A --04 / F8C --04 / FT8D --04 / F9,9F / F9,9J / FT9,9G / 68T-46241-00-00
FT9,9L
F6A 05-- / F8C 05-- / FT8D 05-- 68T-46241-00-00
F8B/FT9,9A/F9,9B 6G8-46241-00-00
F9,9C/FT9,9D/F15A 66M-46241-00-00
F15C / F20B 6AH-46241-00-00
F25A/FT25B/F30A/F40B 65W-46241-00-00
F40A/F50A/FT50B/C/F60A/FT60B 62Y-46241-00-00
F25D / FT25F / F30B / F40F / F50F/FT50G/ FT50J / F50H / 6C5-46241-00-00
F60C/ F60F /FT60D / FT60G / F70A
F25G 6FM-46241-00-00
F80A/B/F100A/B/D/F(L)115A/ 67F-46241-00-00
F100F 6FP-W4624-00-00
With rotor
F(L)115B 6EK-W4624-00-00
bolts
F(L)150A 63P-46241-00-00
F(L)200A/F(L)225A/ 69J-46241-00-00
F(L)200C / F(L)225B / F225C / F(L)250A / F(L)250B 6P2-46241-01-00
(L)Z150P / Z150Q / Z175G / (L)Z200N / Z200P (---2003) 68F-46241-00-00
(L)Z150P / Z150Q / Z175G / (L)Z200N / Z200P (2004---) 68F-46241-10-00
(L)Z250D/Z250F/(L)Z300A 60V-46241-00-00
F175A /F(L)200F / F(L)200G 6DA-W4624-00-00
With rotor
F(L)300A / F(L)350A 6AW-W4624-00-00
bolts
With rotor
F(L)225F / F(L)250D / F(L)300B 6CB-W4624-00-00
bolts
ME422 YU1-35681-91-95
ME422 / ME432 6TA-12444-00-00
ME370 / ME372 6TC-12444-00-00
ME370 / ME372 6TC-12445-01-00
