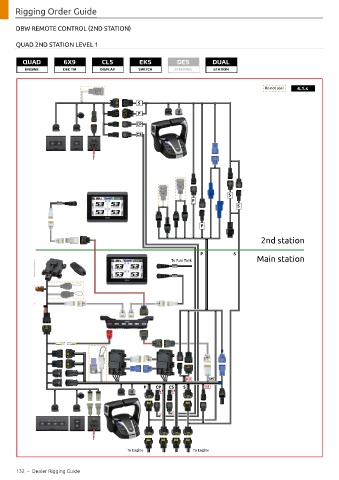

Rigging Order Guide
DBW REMOTE CONTROL (2ND STATION)
QUAD 2ND STATION LEVEL 1
QUAD 6X9 CL5 EKS DES DUAL
ENGINE DEC TM DISPLAY SWITCH STEERING STATION
Do not use! 4.1.s
S
P
CP
CS
S
P
S
P
2nd station
P S
To Fuel Tank Main station
2nd 2nd 6Y9
P CP 2nd 1st CS 2nd 1st SS 2nd
To Engine To Engine
