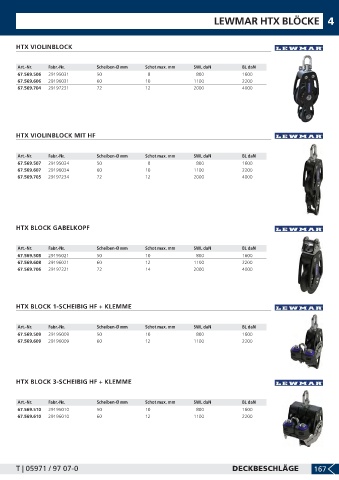

LEWMAR HTX BLÖCKE 4

HTX VIOLINBLOCK

Art.-Nr. Fabr.-Nr. Scheiben-Ø mm Schot max. mm SWL daN BL daN
67.569.506 29195031 50 8 800 1600
67.569.606 29196031 60 10 1100 2200
67.569.704 29197231 72 12 2000 4000

HTX VIOLINBLOCK MIT HF

Art.-Nr. Fabr.-Nr. Scheiben-Ø mm Schot max. mm SWL daN BL daN
67.569.507 29195034 50 8 800 1600
67.569.607 29196034 60 10 1100 2200
67.569.705 29197234 72 12 2000 4000

HTX BLOCK GABELKOPF

Art.-Nr. Fabr.-Nr. Scheiben-Ø mm Schot max. mm SWL daN BL daN
67.569.508 29195021 50 10 800 1600
67.569.608 29196021 60 12 1100 2200
67.569.706 29197221 72 14 2000 4000

HTX BLOCK 1-SCHEIBIG HF + KLEMME

Art.-Nr. Fabr.-Nr. Scheiben-Ø mm Schot max. mm SWL daN BL daN
67.569.509 29195009 50 10 800 1600
67.569.609 29196009 60 12 1100 2200

HTX BLOCK 3-SCHEIBIG HF + KLEMME

Art.-Nr. Fabr.-Nr. Scheiben-Ø mm Schot max. mm SWL daN BL daN
67.569.510 29195010 50 10 800 1600
67.569.610 29196010 60 12 1100 2200
